Dental Microscopes
Surgical microscopes — Complete microscope and loupe solutions delivering exceptional precision, less fatigue and more comfort at work.
A surgical microscope with continuous 0.4X–2.4X zoom (total magnification up to 21.4X), German Schott glass, a built-in 4K imaging module with orange and green filters, and a dual-damping gas spring balance arm — all cable-free.
Why this product

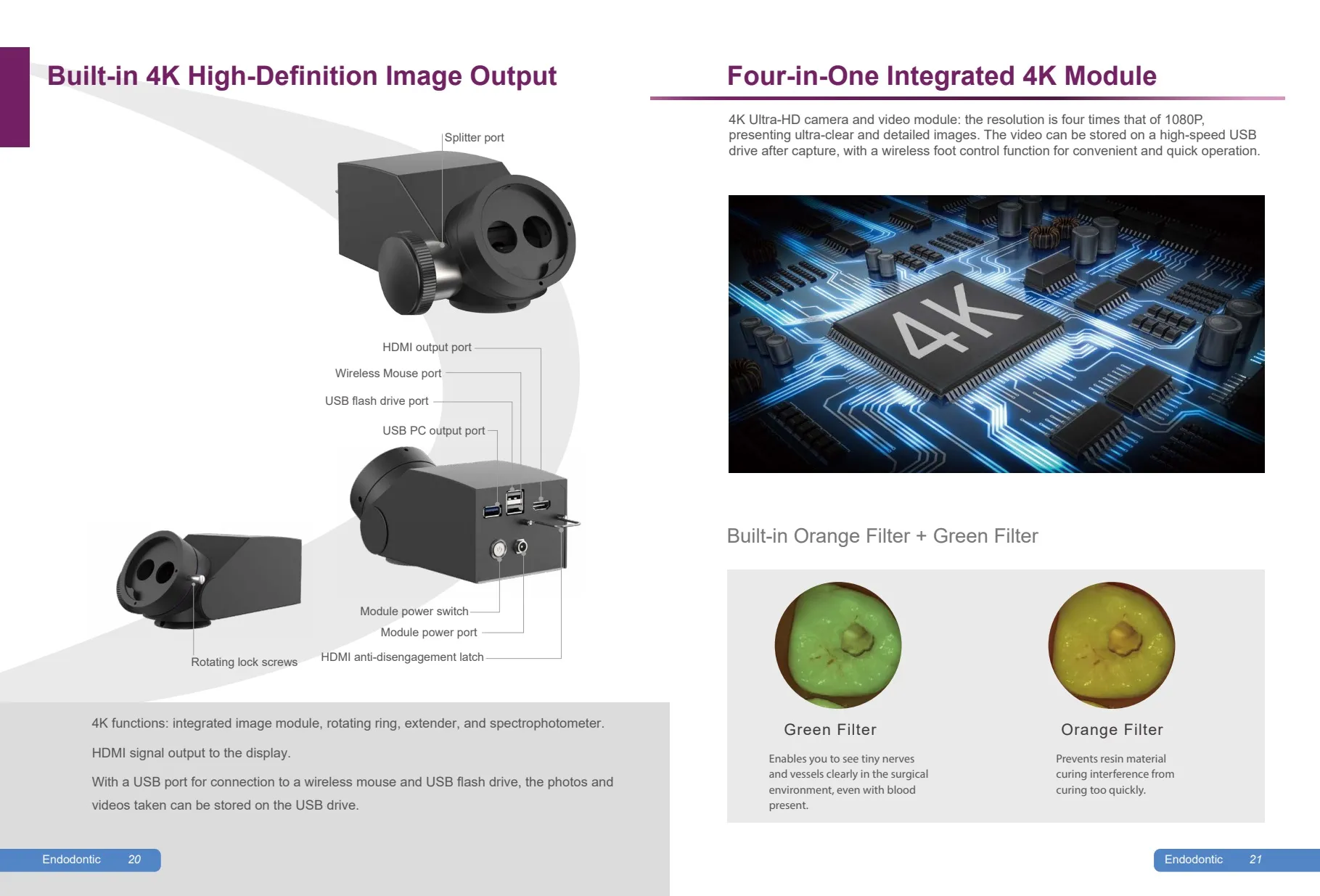

Built-in 4K module
4K camera and video module, HDMI/USB ports and direct USB-drive recording.

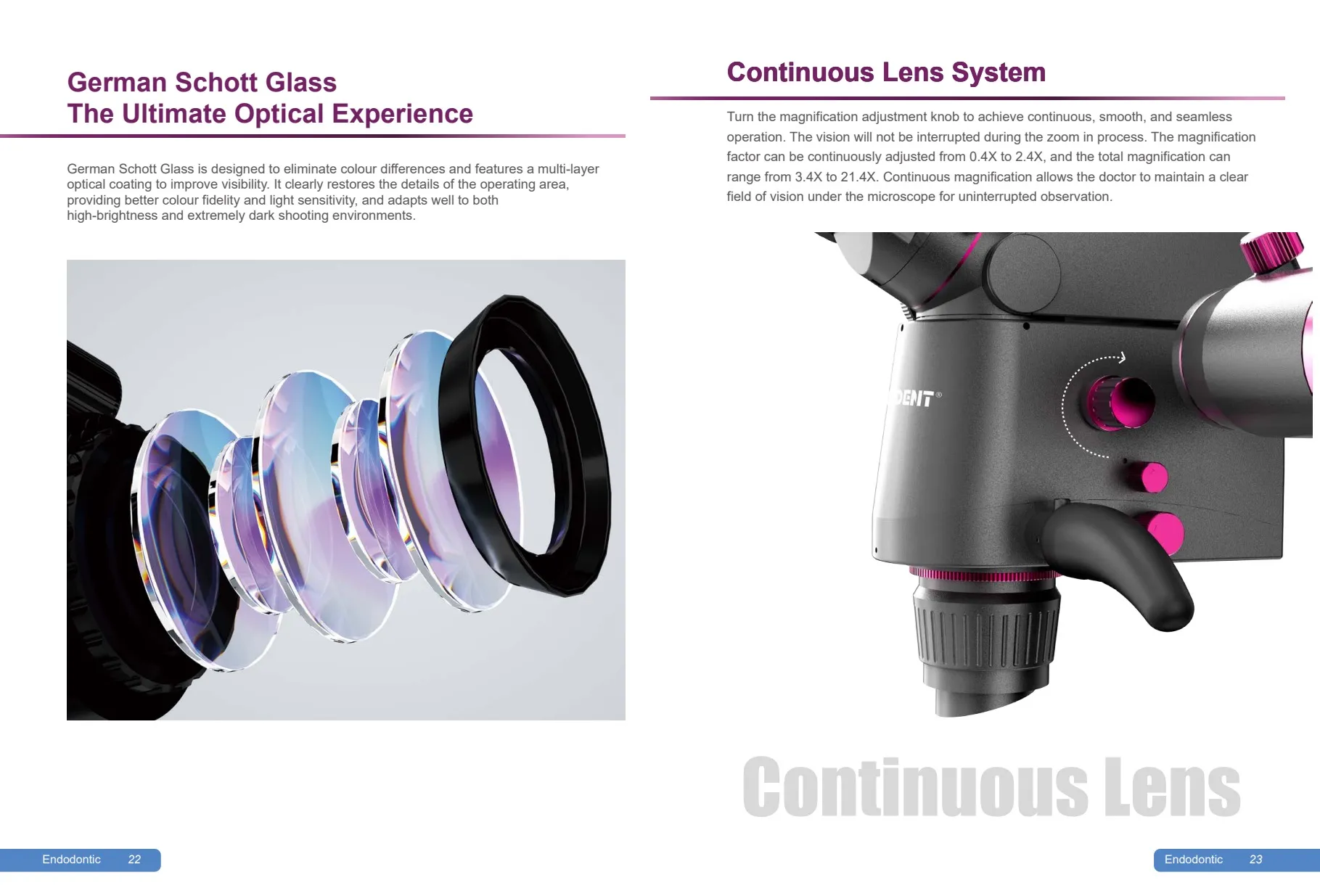

Continuous zoom
Seamless 0.4X–2.4X zoom with total magnification from 3.4X to 21.4X.

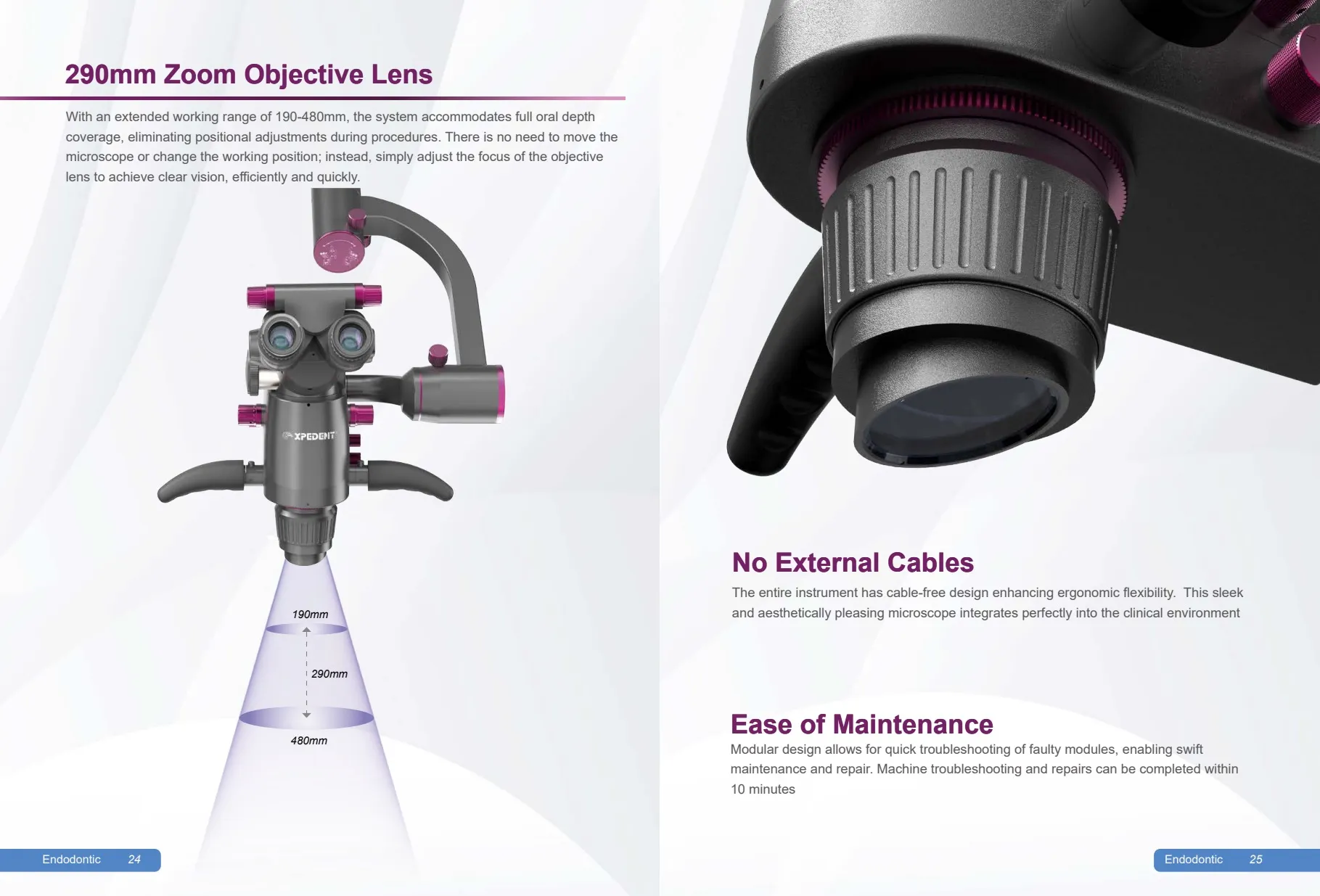

290mm zoom objective
Extended 190–480mm working range covers full oral depth without moving the scope.
Built-in filters
Green filter for nerves/vessels; orange filter to prevent premature resin curing.

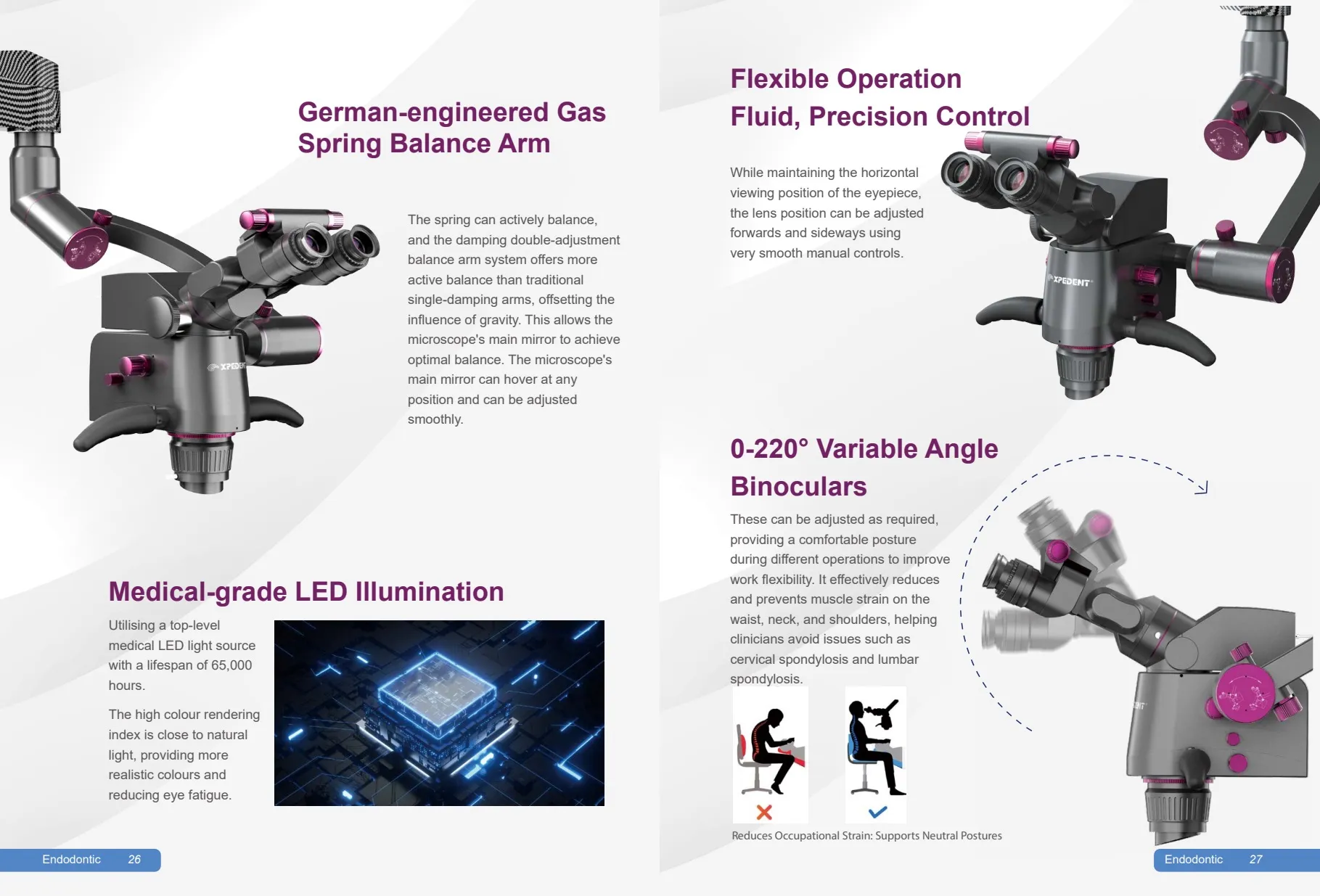

Flexible balance
German gas spring arm with dual damping and a 0–220° variable-angle binocular.
Medical-grade LED
Over 100,000 LUX illumination, 65,000-hour life, near-natural colour rendering.
Specifications
| Magnification system | Continuous lens system, 0.4X–2.4X |
|---|---|
| Eyepiece | 12.5X wide-angle, ±7D, PD 51–76mm |
| Objective | F190–480mm |
| Illuminance | >100,000 LUX — LED |
| Spot diameter | 78mm (medium), adjustable |
| Arm extension | 1860mm |
| Colour filters | Orange and green |
| Installation | Column roller type, “H” base |
| External imaging | Camera port (Canon/Nikon/Sony) with stereo splitter |
| Microscope screen | 3840×2160 @ 60Hz |
